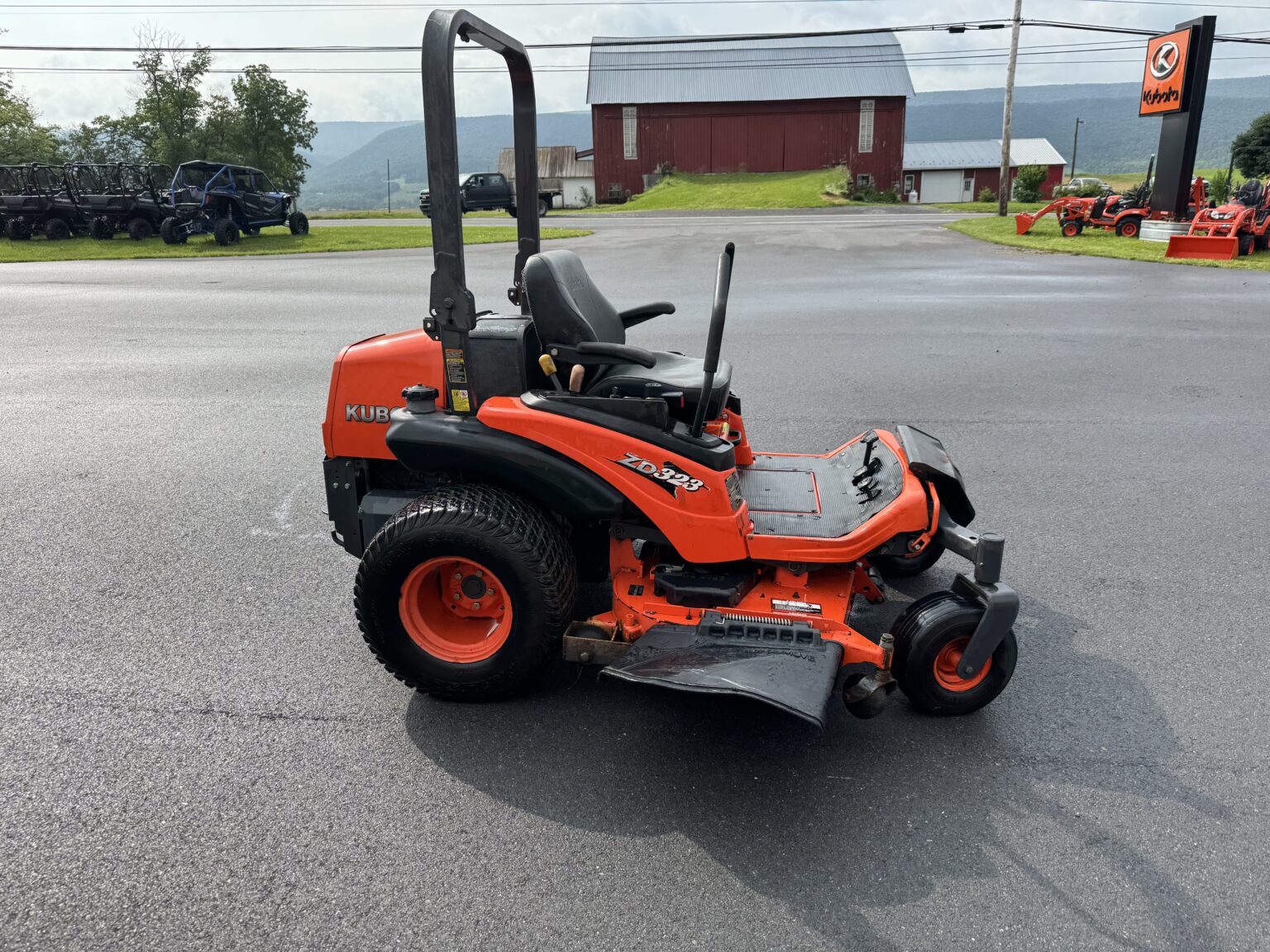

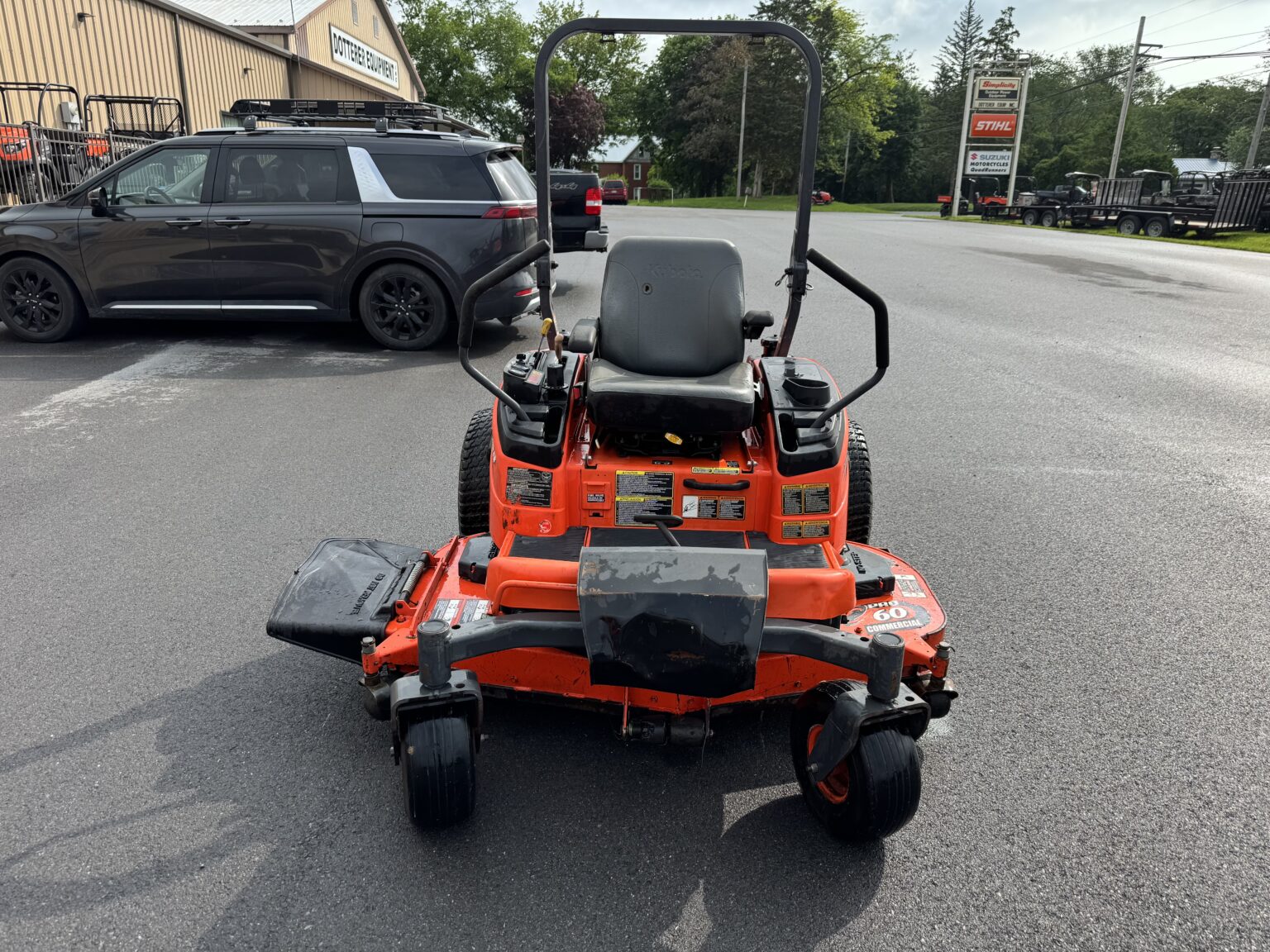

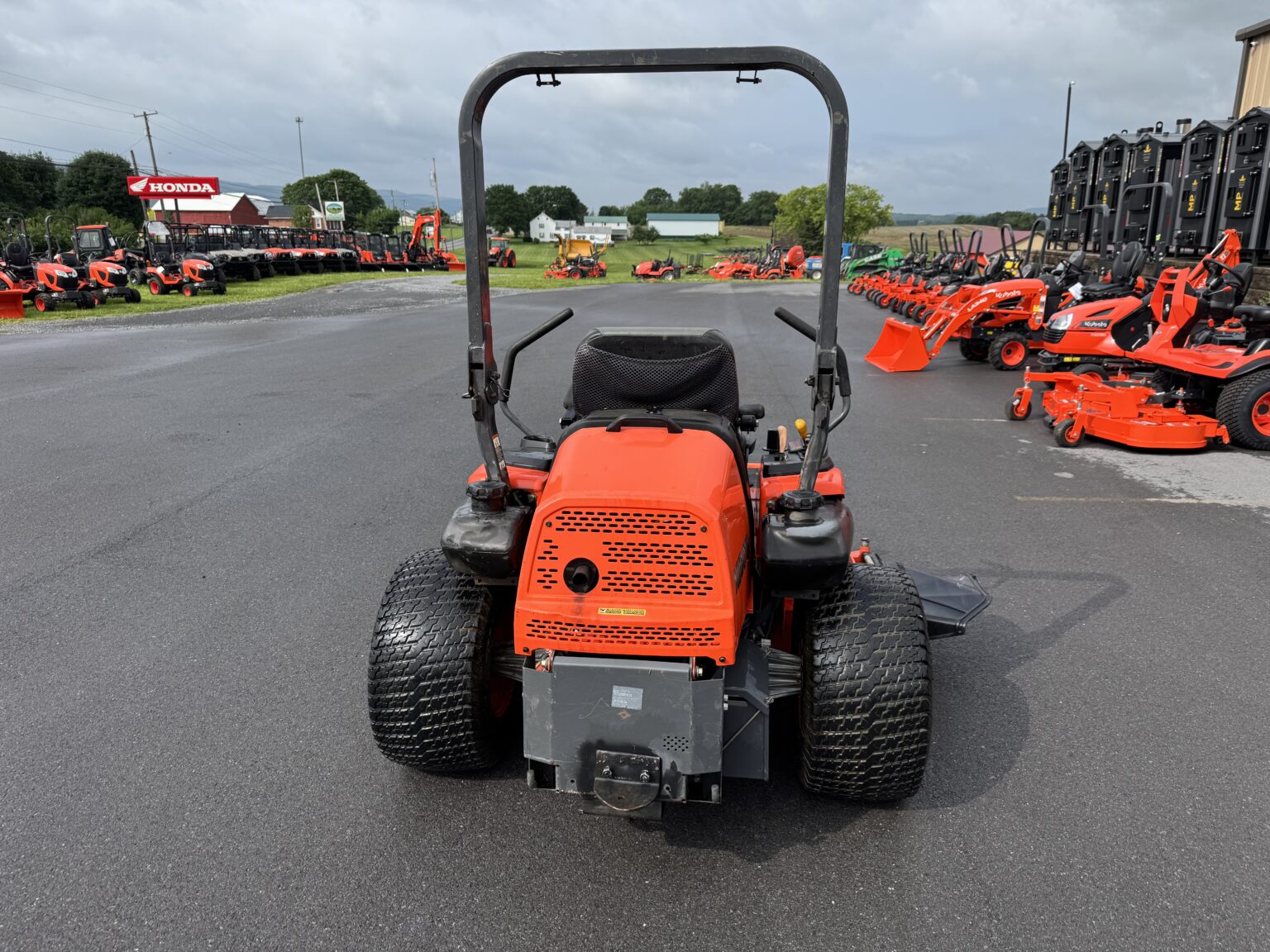

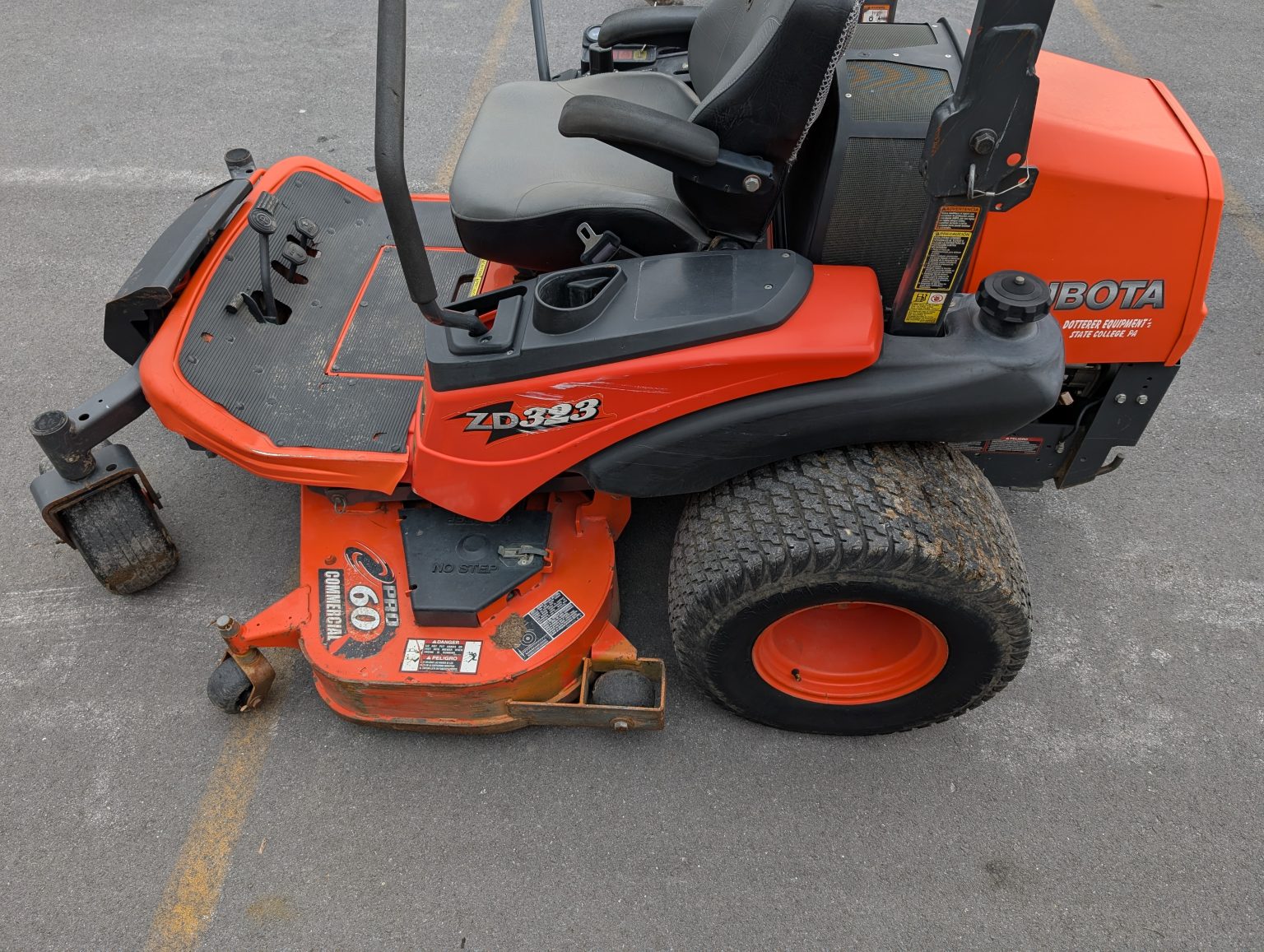

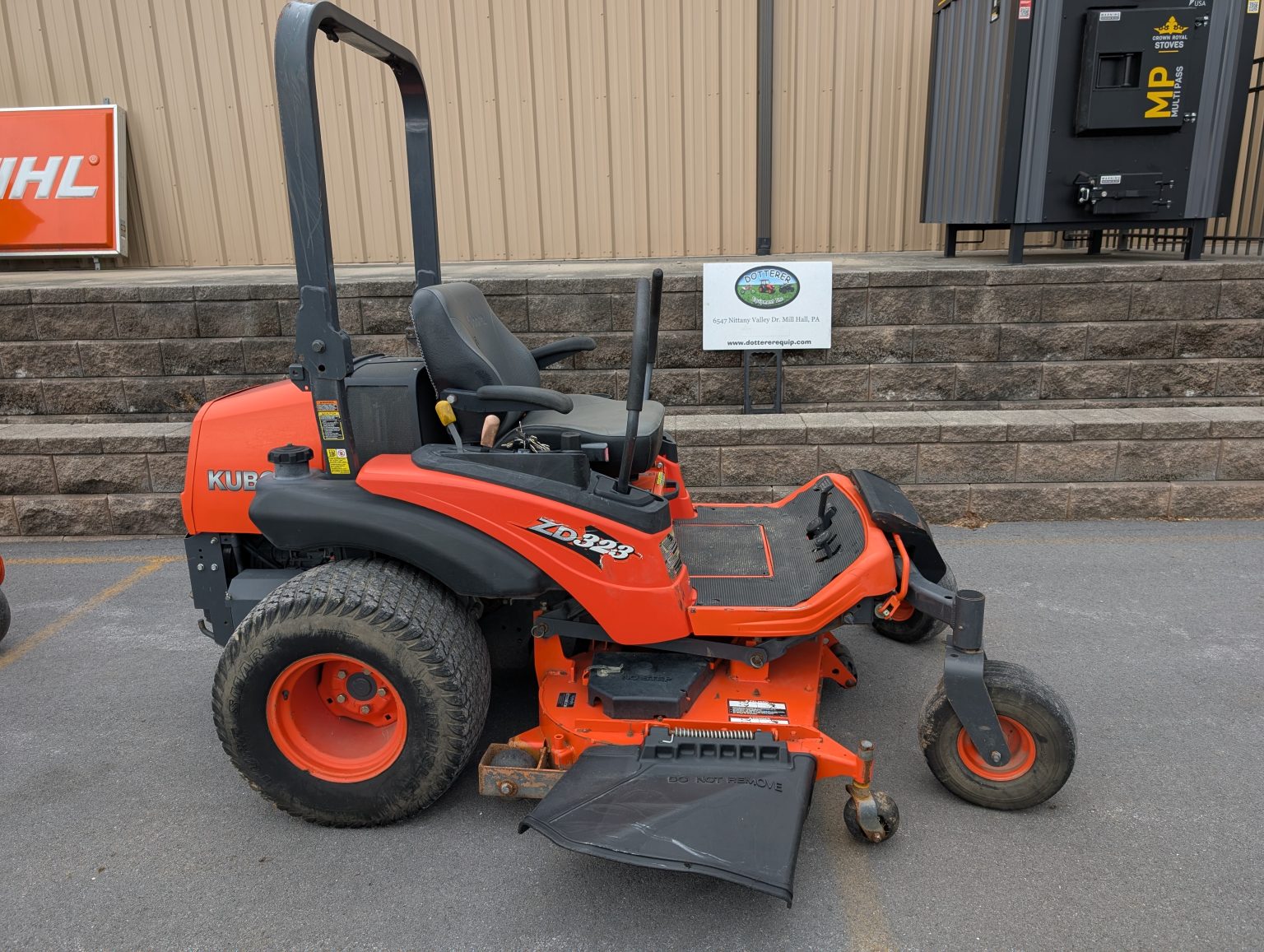

Kubota ZD323-60 – Key Specifications

• Engine: Kubota D902-E3, liquid-cooled 3-cyl diesel, 898 cc (54.8 cu in), 23 hp @ 3,200 rpm.

• Fuel capacity: twin tanks, 12.9 gal / 48.8 L total.

• Electrical: 12-V system, 14-amp alternator; 51R battery, 475 CCA.

• Drive-train: twin hydrostatic pumps driving individual wheel motors, two-lever zero-turn control.

  • Travel speed – forward 0–9.3 mph (0–15 km/h); reverse 0–5.2 mph (0–8.3 km/h).

• PTO: independent mid-shaft with wet-disc clutch; hydraulic deck lift.

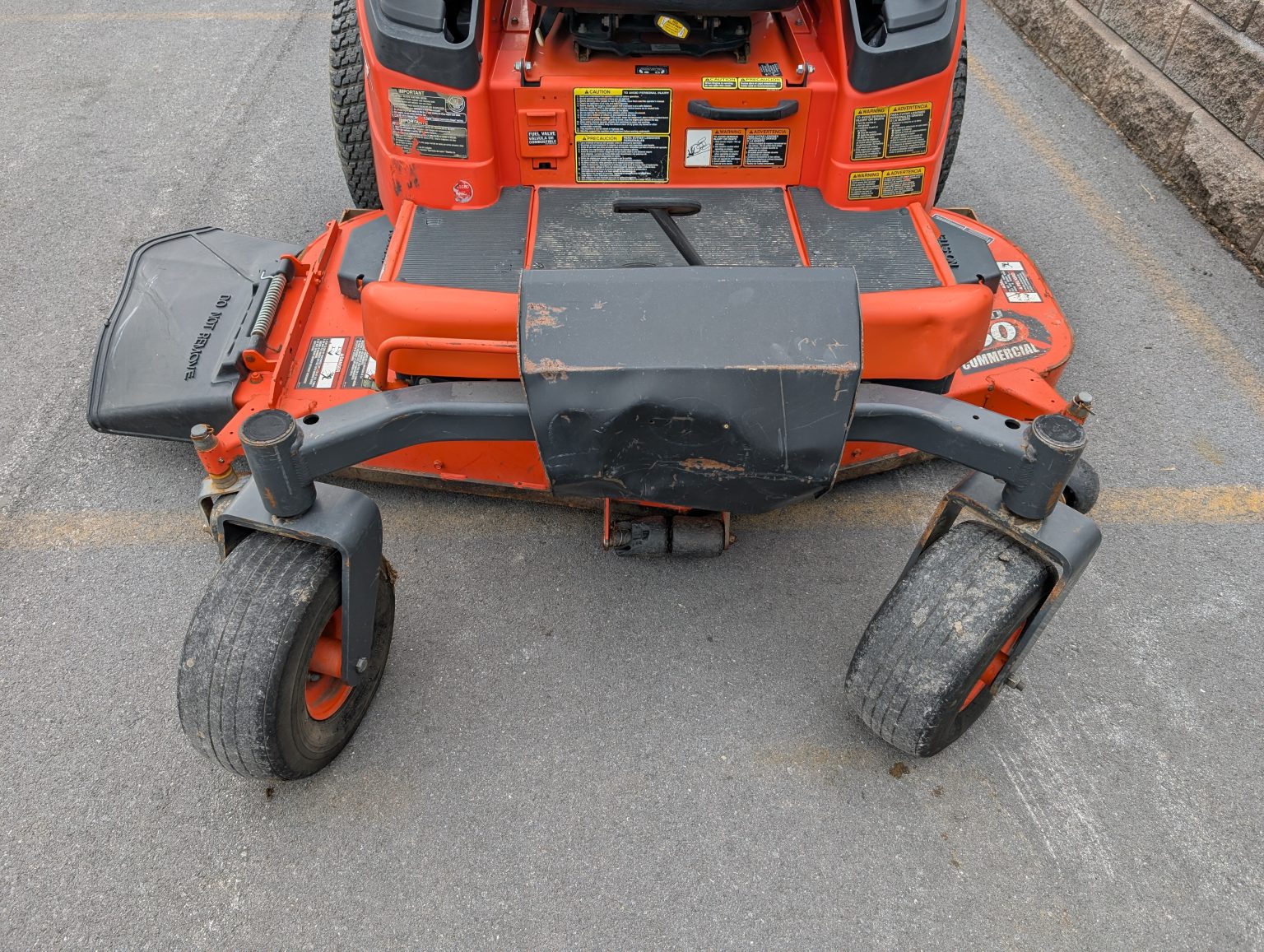

• Mower deck: 60-in Kubota “Pro” fabricated deck (RCK60P-331Z), 7-gauge steel, ~6-in deep; three blades; cutting height 1–5 in in ¼-in steps.

• Dimensions (with deck): length 87.4 in, width 72.8 in, height 75.4 in ROPS up / 61.2 in folded; wheelbase 55.5 in.

• Weight: 1,645 lb / 746 kg (w/deck, dry).

• Tires: front 15 × 6.0-6 turf; rear 26 × 12.0-12 turf.
